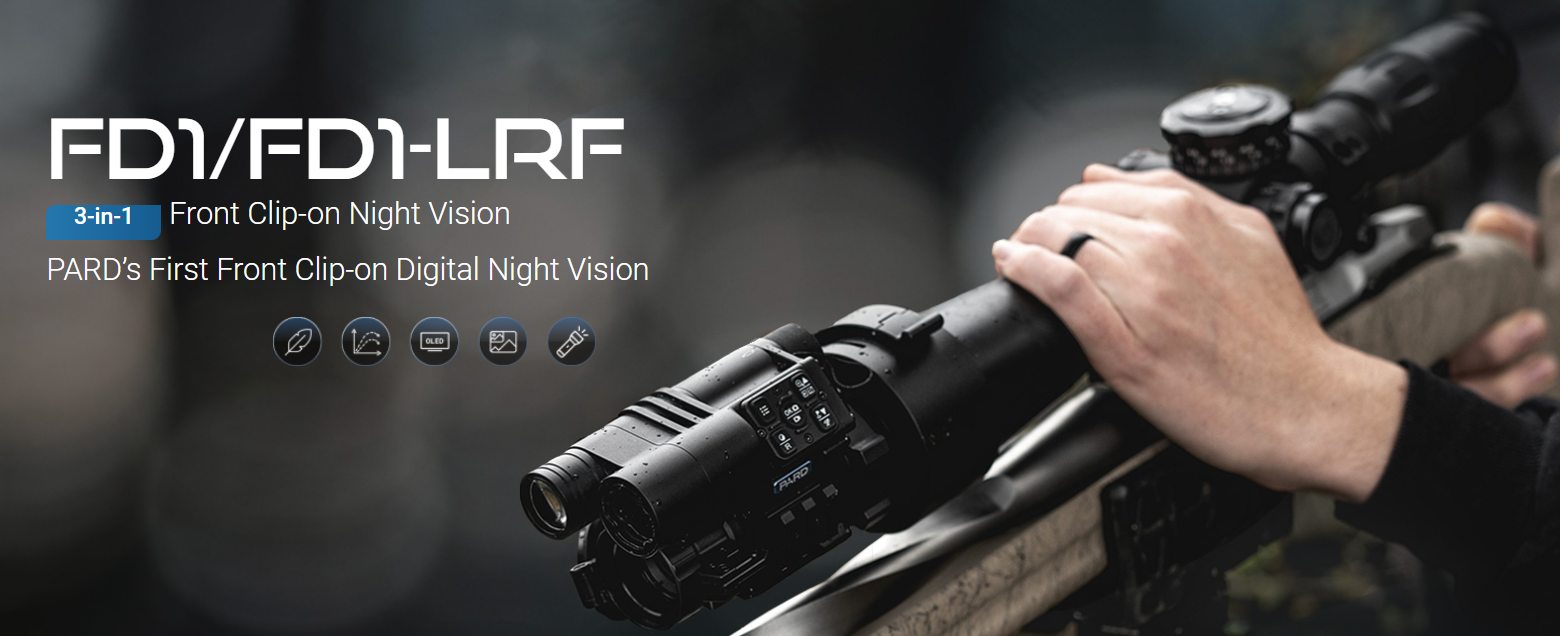

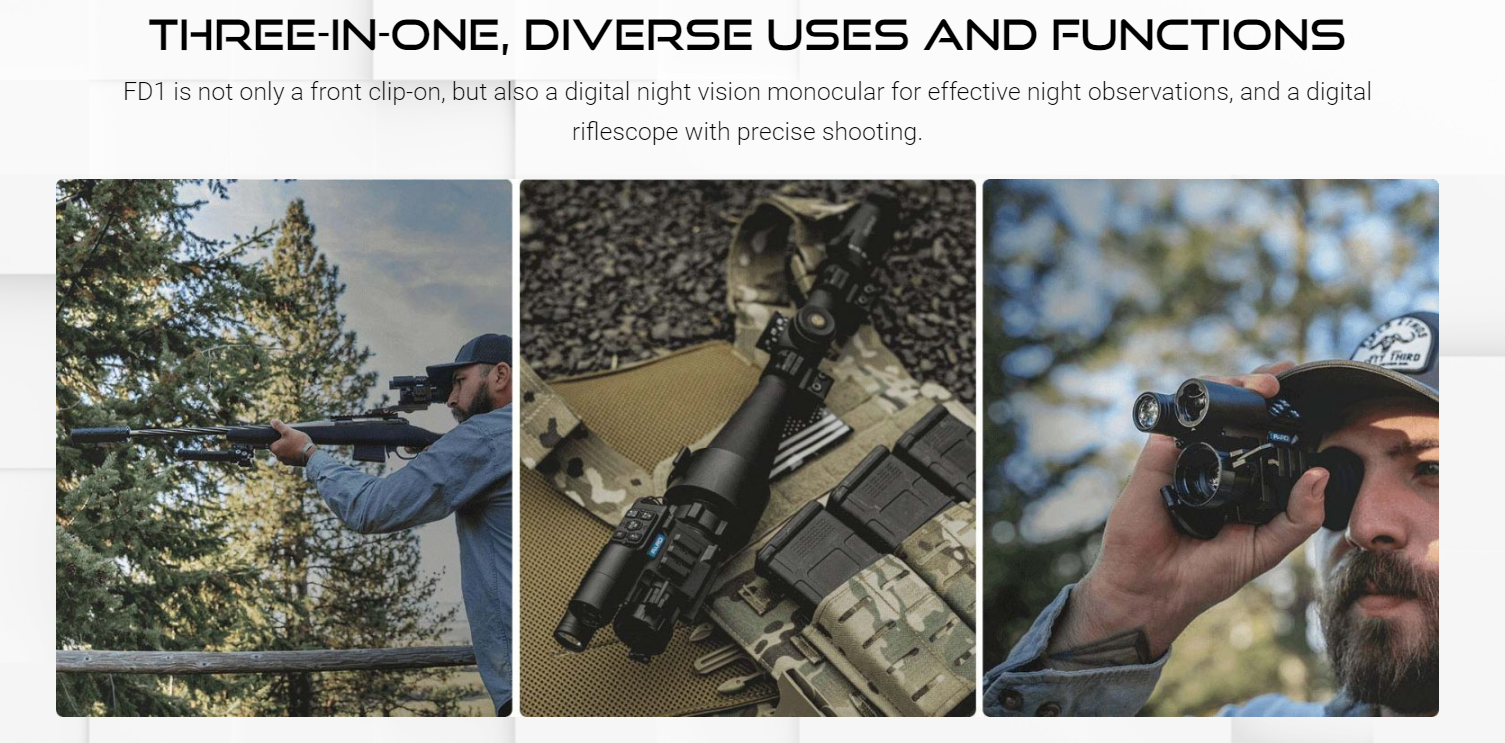

PARD FD1 (940nm) 3 in 1 Front Clip-on Night Vision - $949

SKU:
FD1-940
Add to Cart

Options

Info

SKU:FD1-940

Info

SKU:
FD1-940

Description

PARD FD1 940nm Night Vision Clip-On – Stealth Infrared Upgrade

Available exclusively through authorised Australian stockists.
Find your nearest dealer here: View Stockists

Key Features:

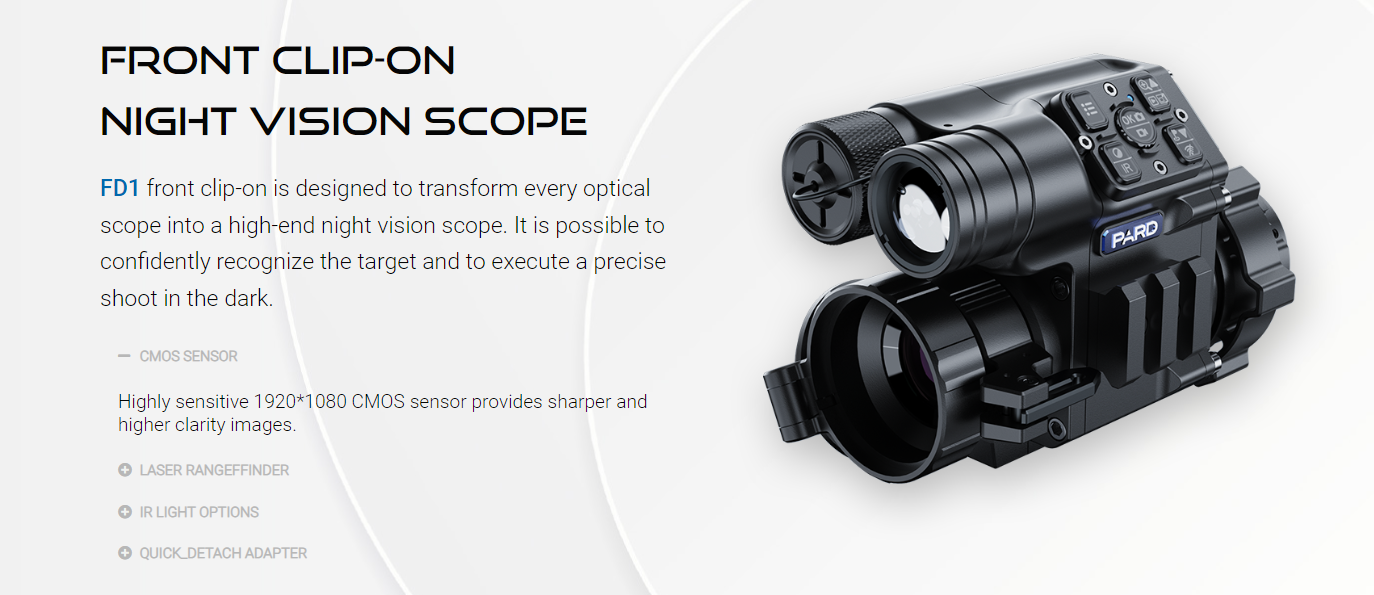

  • Front-mounted night vision clip-on with covert 940nm IR illuminator
  • Recoil-resistant housing compatible with centrefire rifles
  • Integrated laser rangefinder for precise target measurement
  • High-definition OLED display for sharp, low-light imaging

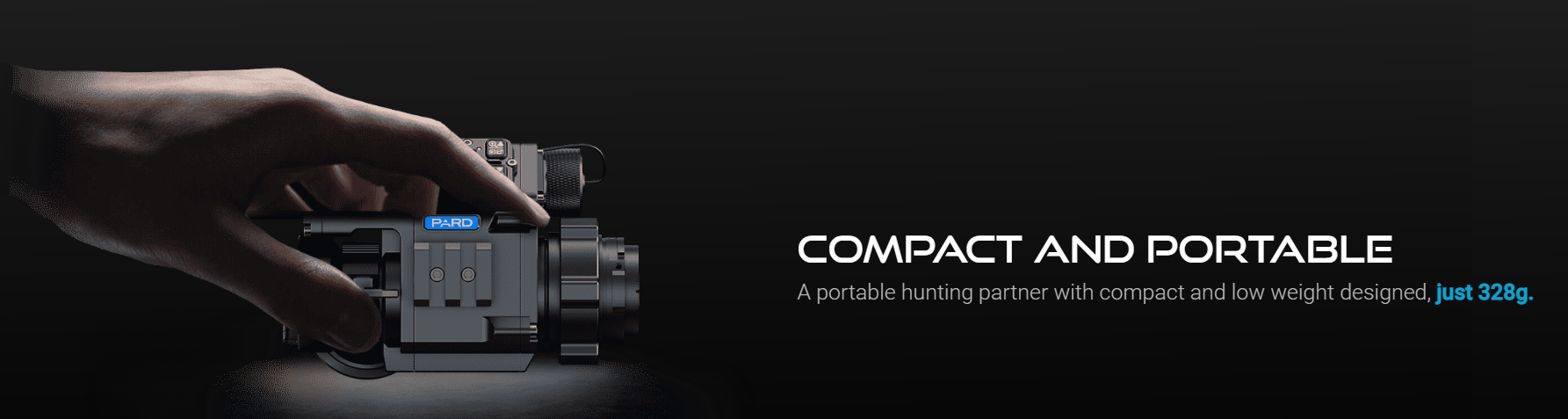

  • Compact and lightweight for fast, unobtrusive mounting
  • IP67 rated for water and dust ingress protection

Built for low-light stealth and tactical performance, the PARD FD1 940nm night vision clip-on offers a refined solution for hunters who require minimal visible infrared signature. Designed for seamless use with your existing daytime optics, this front clip-on night vision device transforms your setup into a high-performance digital night vision scope without requiring re-zeroing. Ideal for nocturnal hunting or sensitive wildlife observation, the 940nm version uses an invisible spectrum IR light source—less detectable by animals and human observers alike. Its compact night vision build and robust construction suit demanding field use across Australian conditions.

Built for Field Durability


The PARD FD1 940nm is engineered for rugged use, with an IP67 rating that protects against rain, dust, and dirt. Its tough, recoil-resistant night vision chassis ensures performance even on larger calibre firearms. Whether navigating bushland in the wet season or trekking dry inland terrain, this durable night vision attachment won’t let you down.

Shooter-First Design

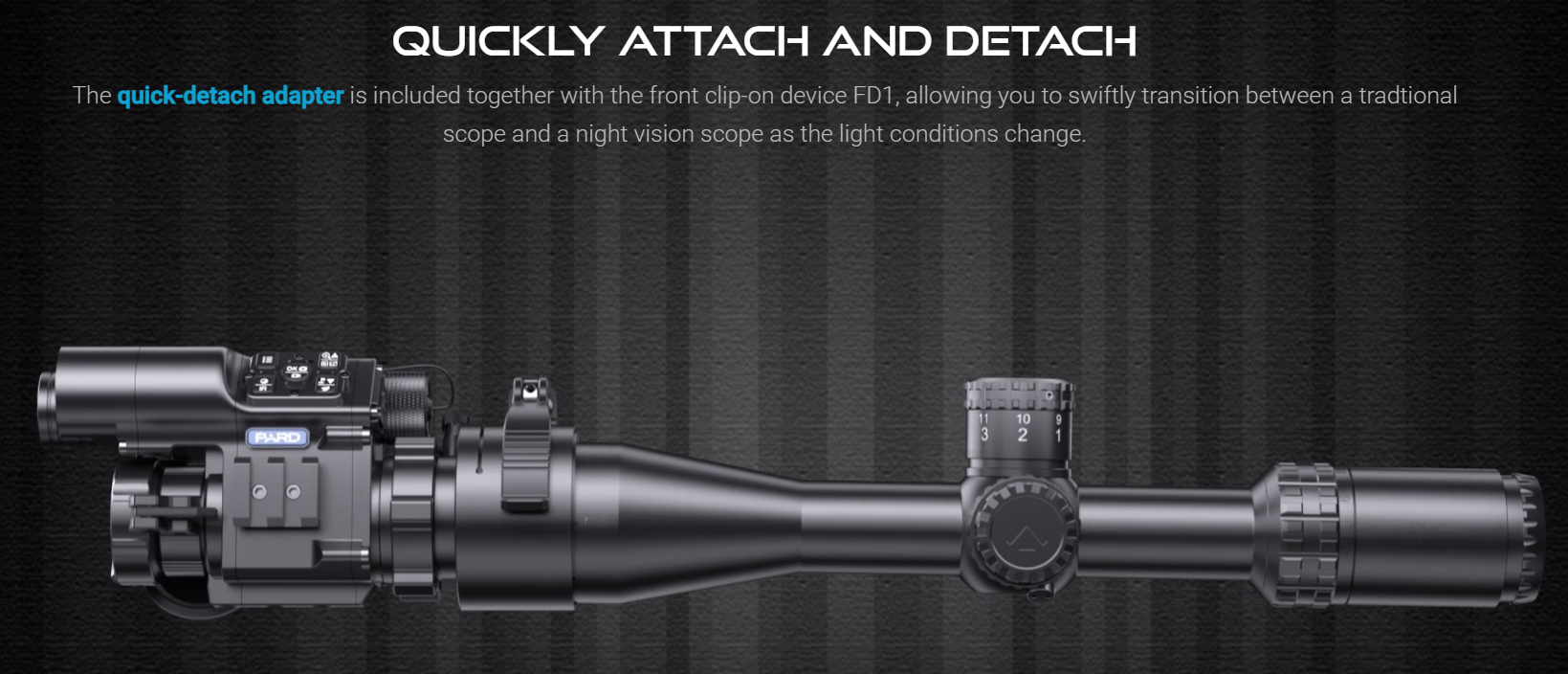

Mounting directly in front of your standard rifle scope, the FD1 940nm retains your zero while enhancing your nighttime visibility. The OLED display night vision system ensures bright, crisp visuals without washout or blur. With a laser rangefinder night vision feature built in, shooters benefit from fast and reliable distance estimation in low-light conditions. Its compact design ensures you maintain agility and balance during extended use.

940nm IR for Stealth Operations


The key difference in this model is its 940nm IR illuminator, offering a stealthier output than standard 850nm variants. This wavelength is virtually invisible to the human eye and most wildlife, making it the preferred choice for covert hunting or perimeter scanning. It delivers excellent mid-range performance while maintaining your concealment. As a digital night vision scope accessory, it’s adaptable, efficient, and purpose-built for discreet field work.

Reliable, Stealth-Capable Night Vision Performance


Whether you're stalking skittish game or patrolling after dark, the PARD FD1 940nm night vision clip-on offers dependable, stealth-ready performance. Lightweight yet powerful, it combines digital imaging with field-proven durability to support hunting or tactical use in sensitive conditions. Experience the benefits of this IP67 rated night vision system today through authorised Australian stockists and upgrade your optic for night-time missions.

Specifications

Model
FD1-850
FD1-940
FD1-850/F
FD1-940/F
Sensor
CMOS
CMOS
CMOS
CMOS
Objective Lens  30mm 30mm 30mm 30mm
Magnification, x
3.5
3.5
3.5
3.5
Field of view (HxV), degrees / m@100m
Horizontal 7.9
Vertical 5.9
Diagonal 9.9
Horizontal 7.9
Vertical 5.9
Diagonal 9.9
Horizontal 7.9
Vertical 5.9
Diagonal 9.9
Horizontal 7.9
Vertical 5.9
Diagonal 9.9
Detection range, m (thermal)




  Sensor




Type
CMOS
CMOS
CMOS
CMOS
Resolution, pixels
1920*1080
1920*1080
1920*1080
1920*1080
Pixel pitch, µm
2.9
2.9
2.9
2.9
NETD, mK




Frame rate, Hz
Color:60/B&W:30
Color:60/B&W:30
Color:60/B&W:30
Color:60/B&W:30
  Optics




Objective lens
30mm
30mm
30mm
30mm
Magnification, x
3.5
3.5
3.5
3.5
Field of view (HxV), degrees / m @ 100 m
Horizontal 7.9
Vertical 5.9
Diagonal 9.9
Horizontal 7.9
Vertical 5.9
Diagonal 9.9
Horizontal 7.9
Vertical 5.9
Diagonal 9.9
Horizontal 7.9
Vertical 5.9
Diagonal 9.9
Eye relief, mm
30
30
30
30
  Display




Type
OLED
OLED
OLED
OLED
Resolution, pixels
1440*1080
1440*1080
1440*1080
1440*1080
  Range Performance




Detection range, m (thermal)




  Laser Rangefinder
Safety Class for laser equipment according IEC 60825-1:2014




Wavelength, nm


850
940
Max. measuring range, m


1000m/1200yd
1000m/1200yd
Measurement Accuracy, m




Min. Measuring Range




Click value, H/V, mm at 100 m




Click range, H/V, mm at 100 m




Number of preloaded reticles
6
6
6
6
  Video Recorder




Video / photo resolution, pixel
2592*1944
2592*1944
2592*1944
2592*1944
Video / photo format
.mp4
.mp4
.mp4
.mp4
Built-in memory, Gb
TF card(128 GB,Max)
TF card(128 GB,Max)
TF card(128 GB,Max)
TF card(128 GB,Max)
  Wi-Fi




Wireless Protocol




Wireless Standard




Frequency, GHz




  Environmental Characteristics




Degree of protection, IP code (IEC60529)
IP67
IP67
IP67
IP67
Operating temperature range, °C
–4℉~122℉/-20℃~50℃
–4℉~122℉/-20℃~50℃
–4℉~122℉/-20℃~50℃
–4℉~122℉/-20℃~50℃
  Connections and Compatibilities




Max. recoil power on rifled weapon (Eo), Joules
6000
6000
6000
6000
Shock resistance on the smooth-bore rifles, caliber




Mounting brackets on weapon




Supported Appplication
PardVision
PardVision
PardVision
PardVision
  Power Supply




Output voltage, V
3.7
3.7
3.7
3.7
Battery type
Lithium Ion 18650
Lithium Ion 18650
Lithium Ion 18650
Lithium Ion 18650
Capacity, mAh




Operating time on battery pack (at t=22°C), h *
≤8
≤8
≤8
≤8
External power supply, V
USB Tpye-C
USB Tpye-C
USB Tpye-C
USB Tpye-C
  Weight & Size




Body Material Aluminum Alloy Aluminum Alloy Aluminum Alloy Aluminum Alloy
Dimensions mm




Weight
  Warranty




Warranty on Device, years




Warranty on Batteries, years




  Trade Data




SKU (Model #)
FD1-850
FD1-940
FD1-850/F
FD1-940/F



Warranty

Pard provides a Limited Warranty of two years on all night vision devices and three years on all thermal imaging devices.

To initiate the warranty process, please return to the store or website where the product was purchased and report the issue. They will assist you with the next steps and help resolve the problem.

This warranty does not cover products that have:

(a) Been used in ways other than their normal and customary manner;
(b) Been subjected to misuse;
(c) Undergone alterations, modifications, or repairs by the customer or any party other than Pard without prior written consent from Pard; (d) Been special order or "closeout" merchandise, or merchandise sold "as-is" by either Pard or a Pard dealer;
(e) Been discontinued by the manufacturer, where parts or replacement units are unavailable due to reasons beyond the control of Pard.

Pard shall not be liable for any defects or damages resulting from mishandling, abuse, misuse, improper storage, or improper operation of the device. This includes use with equipment that is electrically or mechanically incompatible with, or of inferior quality to, the product, as well as failure to maintain the environmental conditions specified by the manufacturer.
