** Special Order **Pard Pantera 640 (50mm) Thermal Riflescope

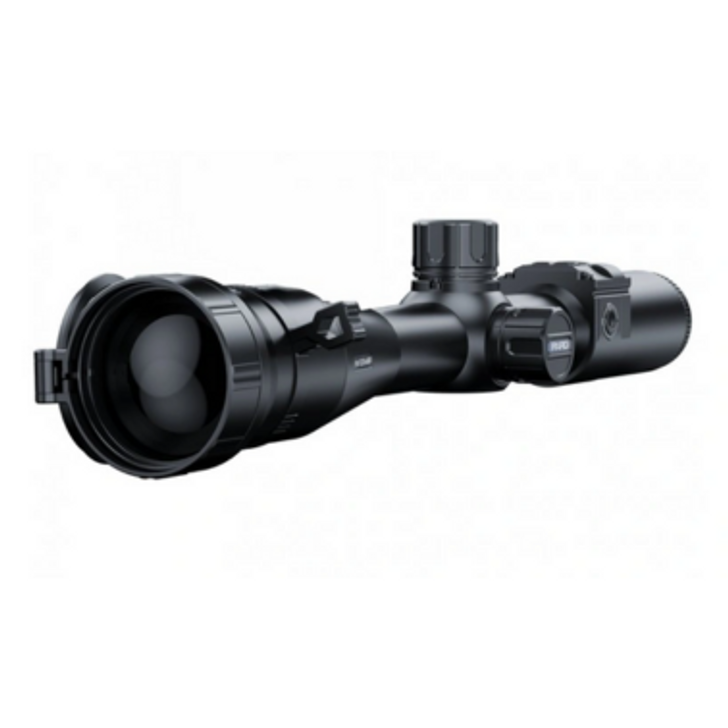

Introducing the Pantera 640 Thermal Imaging Scope, perfect for hunting, wildlife observation, and surveillance. This advanced scope combines state-of-the-art thermal imaging with robust features for superior performance.
The Pantera 640 features an uncooled VOx thermal sensor with a 640 x 512 resolution and 12µm pixel size. It offers a detection distance of up to 2600 metres with a 50mm lens.
The scope provides 2.2x optical magnification with a 50mm lens, plus digital zoom up to 8x. The high-resolution IPS display (800 x 800) includes six reticle styles, four reticle colours, and various scene modes.
Advanced features: ballistic calculator, gyroscope, hot track, picture-in-picture mode, loop recording, recoil-activated recording, and LRF detection up to 1000 metres. Connectivity includes USB Type-C, HDMI, and WiFi for the PardVision2 app. The Lithium Ion 18650 battery lasts up to six hours, with external Type-C power support. IP67 rated, it operates from -30°C to +55°C.
Key Features (PA6-50)
Range Specifications (PA6-50)
| Model | PA4-35 | PA4-35/LRF | PA4-50 | PA4-50/LRF | PA6-50 | PA6-50/LRF | PA6Z-2550/LRF | |
| Classification | Thermal Imaging Scope | Thermal Imaging Scope | Thermal Imaging Scope | Thermal Imaging Scope | ||||
| Sensor | ||||||||
| Type | Uncooled VOx(vanadium oxide) | Uncooled VOx(vanadium oxide) | Uncooled VOx(vanadium oxide) | Uncooled VOx(vanadium oxide) | ||||
| Resolution(pixel) | 480*360 | 480*360 | 640*512 | 640*512 | ||||
| Pixel size(µm) | 12*12 | 12*12 | 12*12 | 12*12 | ||||
| NETD(mK) | ≤20 mK（0.02℃） | ≤20 mK（0.02℃） | ≤20mK（0.02℃） | ≤20mK（0.02℃） | ||||
| Frame rate(Hz) | 50 | 50 | 50 | 50 | ||||
| Detection distance(m) | 1800 | 2600 | 2600 | 1200 & 2600 | ||||
| Optics | ||||||||
| Objective Lens(mm) | 35 | 50 | 50 | 25 & 50 | ||||
| Optical Magnification(x) | 2.1 | 3.0 | 2.2 | 1.1 & 2.2 | ||||
| Digital Zoom(x) | 2/4/6/8 | 2/4/6/8 | 2/4/6/8 | 2/4/6/8 | ||||
| Field of view | Horizontal | 7.1° | 5.0° | 7.0° | 14.0° & 7.0° | |||
| Vertical | 7.1° | 5.0° | 7.0° | 14.0° & 7.0° | ||||
| Diagonal | 10.0° | 7.0° | 9.9° | 19.8° & 9.9° | ||||
| Eye Relief(mm) | 100 | 100 | 100 | 100 | ||||
| Diopter Adjustment(D) | -5~+3 | -5~+3 | -5~+3 | -5~+3 | ||||
| Display | ||||||||
| Type | IPS | IPS | IPS | IPS | ||||
| Resolution(pixel) | 800*800 | 800*800 | 800*800 | 800*800 | ||||
| Reticle Style | 6 | 6 | 6 | 6 | ||||
| Reticle Color | Red/White/Yellow/Green | Red/White/Yellow/Green | Red/White/Yellow/Green | Red/White/Yellow/Green | ||||
| Scene Mode | City/Rain/Forest | City/Rain/Forest | City/Rain/Forest | City/Rain/Forest | ||||
| Image mode | WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY | WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY | WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY | WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY | ||||
| Photo / Video | ||||||||
| Photo Resolution(pixel) | 1536*1536 | 1536*1536 | 1536*1536 | 1536*1536 | ||||
| Photo Format | .JPG | .JPG | .JPG | .JPG | ||||
| Video Resolution(pixel) | 768*768 | 768*768 | 768*768 | 768*768 | ||||
| Video Format | .mp4 | .mp4 | .mp4 | .mp4 | ||||
| Storage(GB) | Micro SD card(Max. 128) | Micro SD card(Max. 128) | Micro SD card(Max. 128) | Micro SD card(Max. 128) | ||||
| Image Engine | Pard IREA | Pard IREA | Pard IREA | Pard IREA | ||||
| Main Function | ||||||||
| LRF detection range(m/yd) | LRF Variant 1000/1200 | LRF Variant 1000/1200 | LRF Variant 1000/1200 | LRF Variant 1000/1200 | ||||
| Ballistic Calculator | Yes | Yes | Yes | Yes | ||||
| PIP | Yes | Yes | Yes | Yes | ||||
| Hot Track | Yes | Yes | Yes | Yes | ||||
| Gyroscope | Yes | Yes | Yes | Yes | ||||
| Recoil-activated recording | Yes | Yes | Yes | Yes | ||||
| Loop Recording | Yes | Yes | Yes | Yes | ||||
| E-compass | Yes | Yes | Yes | Yes | ||||
| Shutter | Mechanical Shutter | Mechanical Shutter | Mechanical Shutter | Mechanical Shutter | ||||
| Microphone | Yes | Yes | Yes | Yes | ||||
| Firmware Upgrade | Yes | Yes | Yes | Yes | ||||
| Connections | ||||||||
| USB Tpye-C | Yes | Yes | Yes | Yes | ||||
| HDMI Output | Yes | Yes | Yes | Yes | ||||
| WiFi | Yes | Yes | Yes | Yes | ||||
| Supported Apps | PardVision2 | PardVision2 | PardVision2 | PardVision2 | ||||
| Power Supply | ||||||||
| Battery Type | Lithium Ion 18650*1 | Lithium Ion 18650*1 | Lithium Ion 18650*1 | Lithium Ion 18650*1 | ||||
| Output Voltage(V) | 3.7 | 3.7 | 3.7 | 3.7 | ||||
| Operating Time(h) | ≤6 | ≤6 | ≤6 | ≤6 | ||||
| External power supply(V) | Type-C | Type-C | Type-C | Type-C | ||||
| Environmental Characteristic | ||||||||
| Degree of protection | IP67 | IP67 | IP67 | IP67 | ||||
| Operating Temp(°C/°F) | -30 ~ +55 / -22 ~ +131 | -30 ~ +55 / -22 ~ +131 | -30 ~ +55 / -22 ~ +131 | -30 ~ +55 / -22 ~ +131 | ||||
| Recoil Resistance(J) | 6000 | 6000 | 6000 | 6000 | ||||
| Material | ||||||||
| Housing | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | ||||
| Objective Lens | All-glass multi-coated lens | All-glass multi-coated lens | All-glass multi-coated lens | All-glass multi-coated lens | ||||
| Measurement | ||||||||
| Product Dimension/with LRF(L * W * H, mm) | 352 x 93 x 82 mm | 364 x 93 x 82 mm | 364 x 93 x 82 mm | 369 x 82 x 93mm | ||||
| N.W/pcs(with LRF&battery, g) | 622g | 681.5g | 681.5g | 759g | ||||
