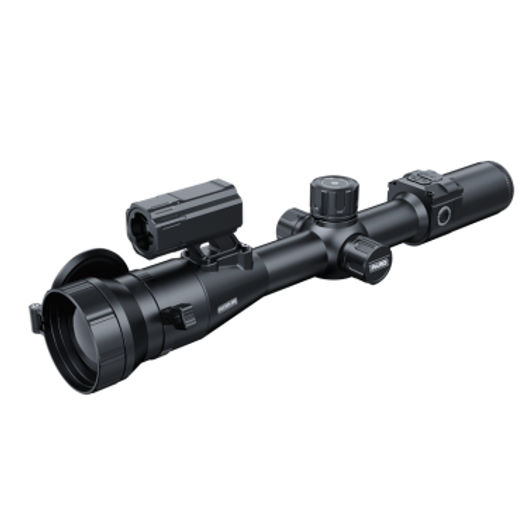

Push your long-range thermal imaging to the next level with the PARD Pantera Q 480 (50mm with LRF) — a high-performance thermal riflescope built for precision detection and ranging. Featuring a 50mm lens, 3.7x optical magnification, and a 480×360 VOx sensor, this scope delivers exceptional clarity and reach for demanding hunters and shooters. Integrated tools like a 1000m laser rangefinder, ballistic calculator, and recoil-activated recording make it a complete field solution.
| Model | Pantera 480 Q | Pantera 640 Q | |
| Sensor | |||
| Type | Uncooled VOx(vanadium oxide) | Uncooled VOx(vanadium oxide) | |
| Resolution(pixel) | 480*360 | 640*512 | |
| Pixel size(µm) | 12*12 | 12*12 | |
| NETD(mK) | ≤18mK（0.018℃） | ≤18mK（0.018℃） | |
| Frame rate(Hz) | 50 | 50 | |
| Detection distance(m) | 1800/2600 | 2600 | |
| Optics | |||
| Objective Lens (Focal length/mm) | 35/50 | 50 | |
| Optical Magnification(x) | 2.6/3.7 | 3 | |
| Digital Zoom(x) | 2/4/6/8 | 2/4/6/8 | |
| Field of view(°) | Horizontal | 9.4/6.6 | 8.8 |
| Vertical | 7.1/4.9 | 7 | |
| Diagonal | 11.7/8.2 | 11.2 | |
| Field of view (m @100m) |
Horizontal | 16.5/11.5 | 15.4 |
| Vertical | 12.3/8.6 | 12.3 | |
| Focus Range | 10m ~ ∞ | 10m ~ ∞ | |
| Eye Relief(mm) | 60 | 60 | |
| Diopter Adjustment(D) | -5~5 | -5~5 | |
| Display | |||
| Type | OLED | OLED | |
| Resolution(pixel) | 1600*1200 | 1600*1200 | |
| Reticle Style | 6 | 6 | |
| Reticle Color | Red/White/Yellow/Green | Red/White/Yellow/Green | |
| Scene Mode | City/Rain/Forest | City/Rain/Forest | |
| Image mode | WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY | WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY | |
| Photo / Video | |||
| Photo Resolution(pixel) | TBD | TBD | |
| Photo Format | .JPG | .JPG | |
| Video Resolution(pixel) | TBD | TBD | |
| Video Format | .mp4 | .mp4 | |
| Storage(GB) | Micro SD card(Max. 128) | Micro SD card(Max. 128) | |
| Image Engine | Pard IREA | Pard IREA | |
| Main function | |||
| LRF detection range(m/yd) | 1000/1200 | 1000/1200 | |
| Ballistic Calculator | Yes | Yes | |
| PIP | Yes | Yes | |
| Hot Track | Yes | Yes | |
| Gyroscope | Yes | Yes | |
| Recoil-activated recording | Yes | Yes | |
| Loop Recording | Yes | Yes | |
| E-compass | Yes | Yes | |
| Shutter | Mechanical Shutter | Mechanical Shutter | |
| Firmware Upgrade | Yes | Yes | |
| Connections | |||
| USB Tpye-C | Yes | Yes | |
| HDMI Output | Yes | Yes | |
| WiFi | Yes | Yes | |
| Supported Apps | PardVision2 | PardVision2 | |
| Power Supply | |||
| Battery Type | Lithium Ion 21700*1 | Lithium Ion 21700*1 | |
| Output Voltage(V) | 3.7 | 3.7 | |
| Operating Time(h) | ≤6 | ≤6 | |
| External power supply(V) | Type-C | Type-C | |
| Environmental characteristic | |||
| Degree of protection | IP67 | IP67 | |
| Operating Temp(°C/°F) | -30 ~ +55 / -22 ~ +131 | -30 ~ +55 / -22 ~ +131 | |
| Recoil Resistance(J) | 6000 | 6000 | |
| Material | |||
| Housing | Aluminum Alloy | Aluminum Alloy | |
| Objective Lens | All-glass multi-coated lens | All-glass multi-coated lens | |
| Measurement | |||
| Product Dimension/with LRF(L * W * H, mm) | TBD | TBD | |
| N.W/pcs(with battery, g) | TBD | TBD | |
